CASTBOND CLAD PIPE

CASTBOND CLAD PIPE

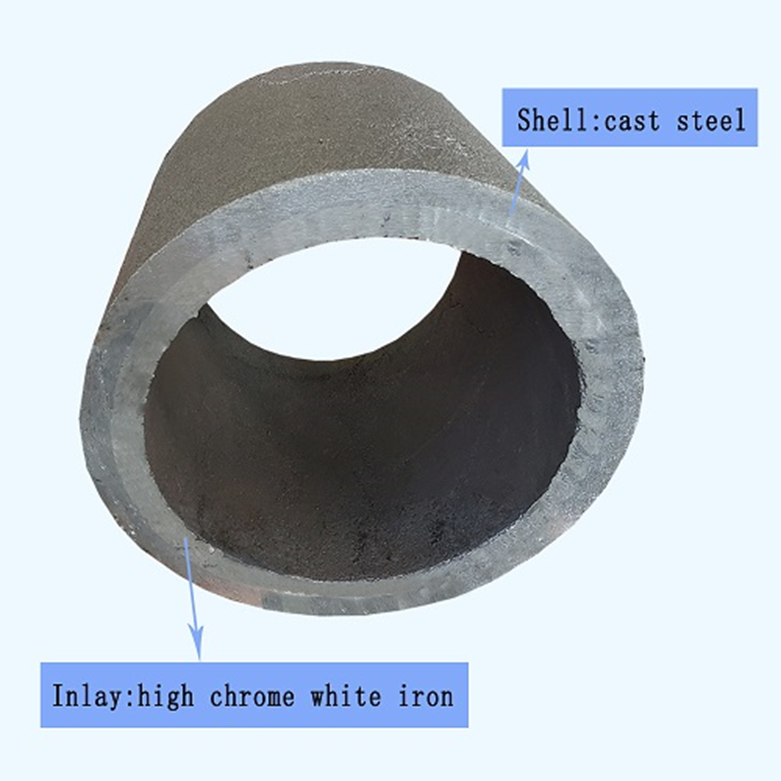

Description: Real metallurgy bond between outer steel and inlay high chrome white iron

Outer shell: cast steel

Inlay: High chrome white iron, hardness HRC52-60

Key protection:

*High pressure

*High abrasion

*Corrosion

CASTBOND CLAD PIPE

DIMENSION CHART
Material	Hardness of inlay	Wall Thickness (mm)	Wall Thickness Shell+inlay	unit weight per meter (kg)
				OD in mm
				850	760	630	560	530	480	402	377	335	299	245	200	168	159
Cast steel shell with high chrome white iron inlay	HRC 56-60	22	12+10							206	193	170	150	121	97	79
		24	12+12							224	209	184	163	131	104	85	80
		26	14+12			387	342	323	291	241	225	198	175	140	112
		28	14+14					347	312	258	241	212	187	150	119	97
		30	16+14		540	444	392	370	333	275	257	226	199	159
		32	16+16		574	472	417	393	354	292	272	239	211	168	133	107
		34	18+16	684	609	500	441	416	374	309	288	252	222
		36	18+18	723	643	527	465	439	394	325	303	265	233	186	146	117
		38	20+18	761	677	555	489	461	414	366	318
		40	20+20	799	710	582	513	483	434	357	332	291	255	202	158
		44	22+22	875	777	636	560	527	473	388	361	316	277	218	169
Length of each pipe : 2 meters or 3 meters				OD>480mm, Length of each pipe = 2 meters						OD<480mm, Length of each pipe = 3 meters
