Nihard billets

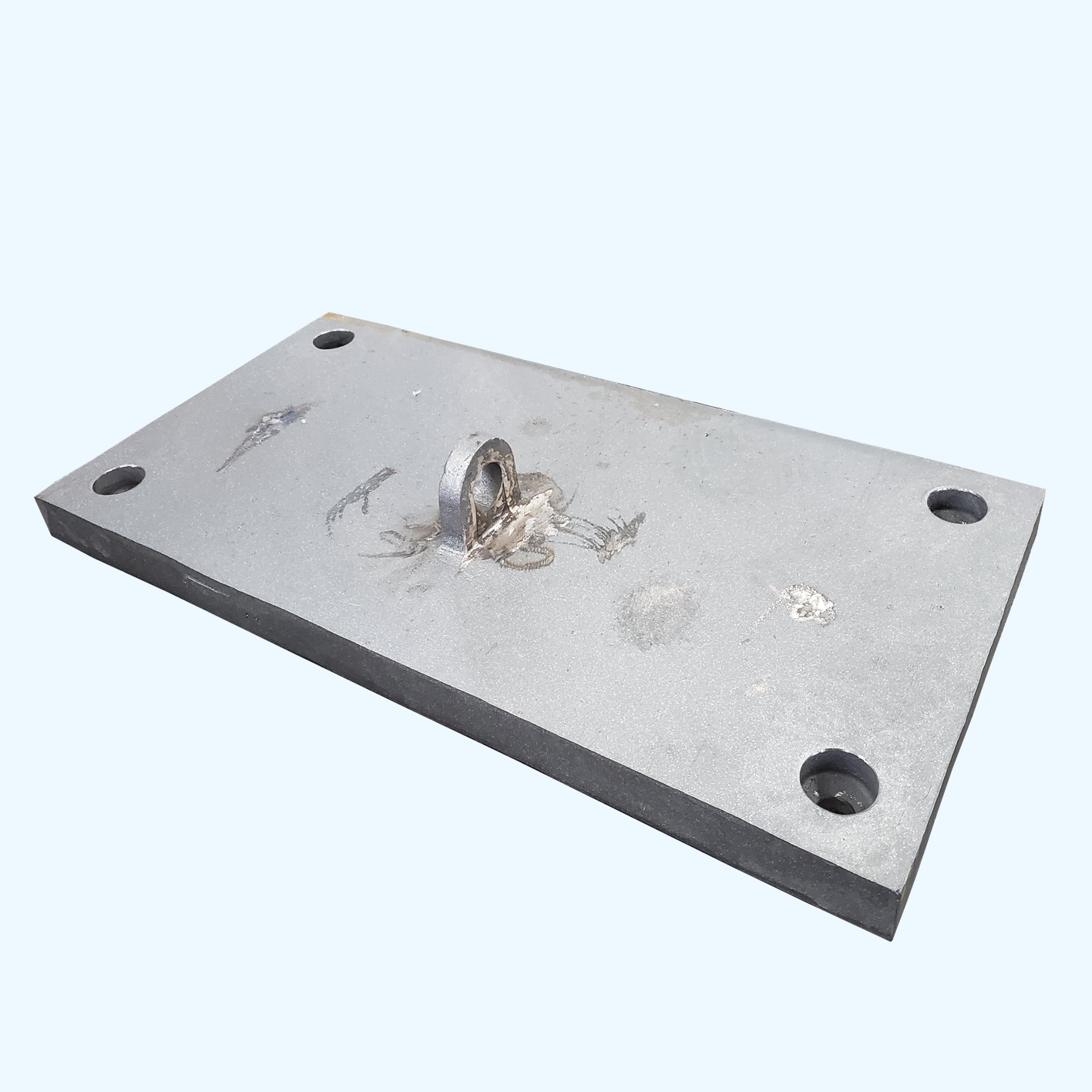

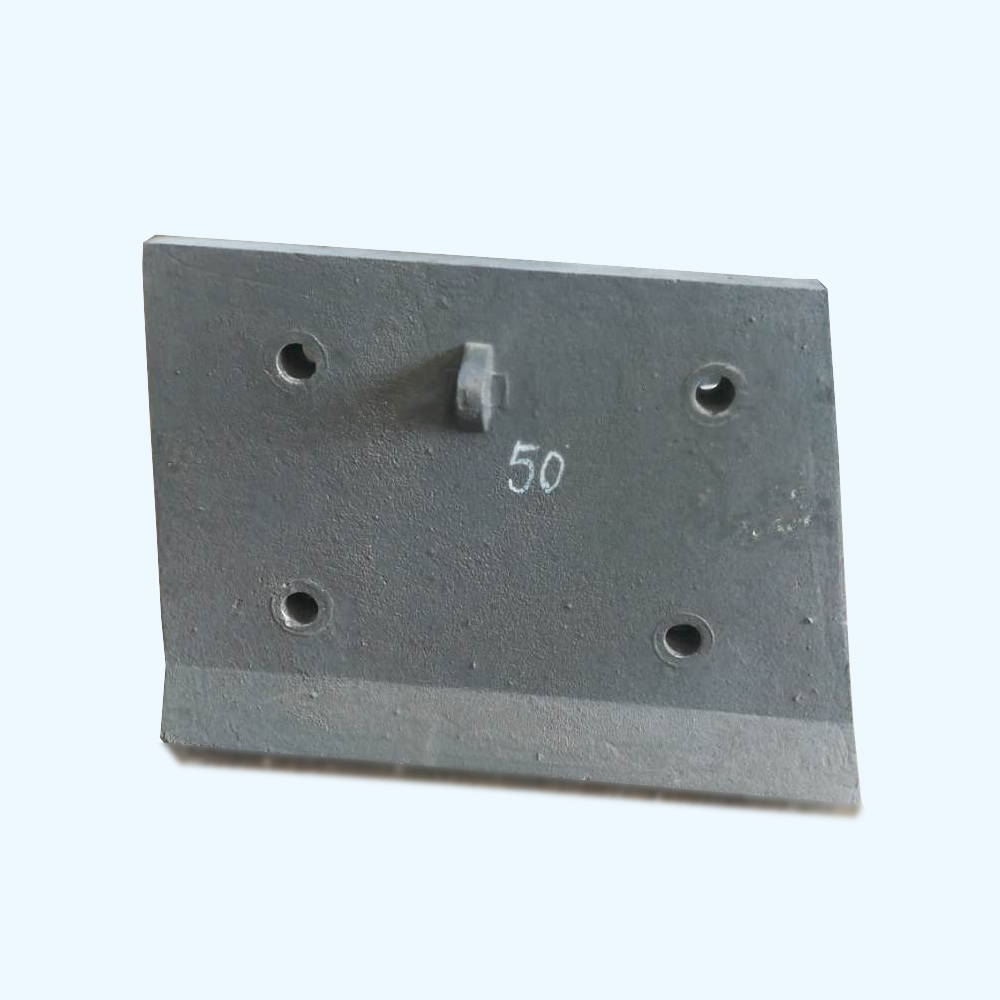

Nihard cast liner
Description: Nihard 4 casting liners or wear billets
Hardness: Brinell 600+
Main application: hopper/chute liner for wear & impact protection
Installing method: bolt
Typical parts: lip liner, wear billets, chute liner etc.
Customized size & shape available

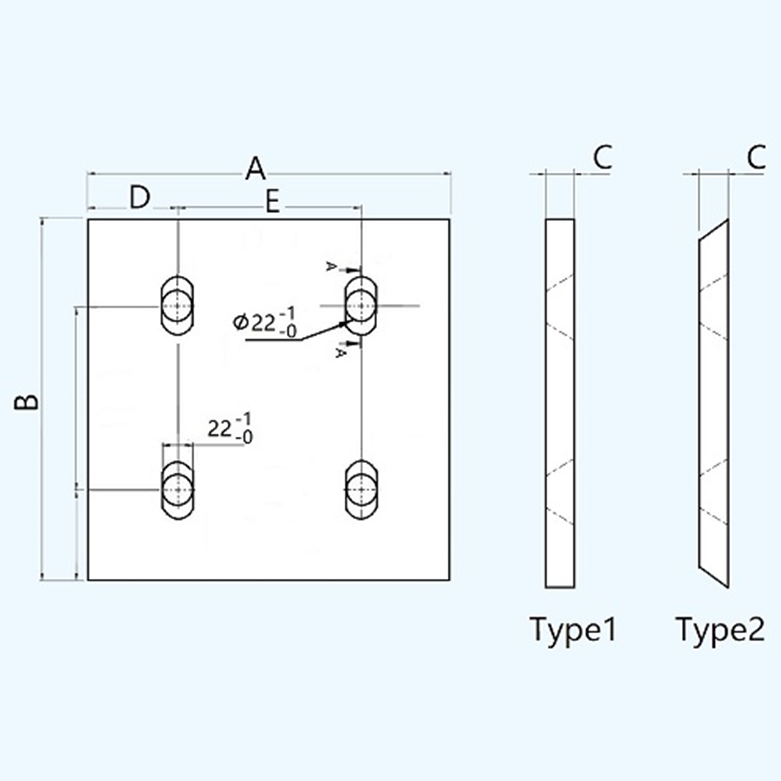

Size chart of standard liner | |||||||
Part No. | Type | A | B | C | D | E | Weight (kgs) |
L1 | 1 & 2 | 300 | 300 | 20 | 75 | 150 | 13.60 |
L2 | 1 & 2 | 300 | 200 | 20 | 75 | 150 | 9.20 |
L3 | 1 & 2 | 300 | 150 | 20 | 75 | 150 | 6.80 |
L4 | 1 & 2 | 300 | 120 | 20 | 75 | 150 | 5.40 |
L5 | 1 & 2 | 300 | 100 | 20 | 75 | 150 | 4.50 |
L6 | 1 & 2 | 200 | 100 | 20 | 62.5 | 75.0 | 3.10 |
N1 | 1 & 2 | 296 | 146 | 32 | 73 | 10.60 | |
N2 | 1 & 2 | 296 | 196 | 32 | 98 | 14.30 | |
N3 | 1 & 2 | 296 | 296 | 32 | 73 | 150.0 | 21.70 |
ML1 | 1 & 2 | 300 | 148 | 32 | 150 | 75.0 | 10.90 |
ML3 | 1 & 2 | 300 | 300 | 32 | 150 | 75.0 | 22.30 |

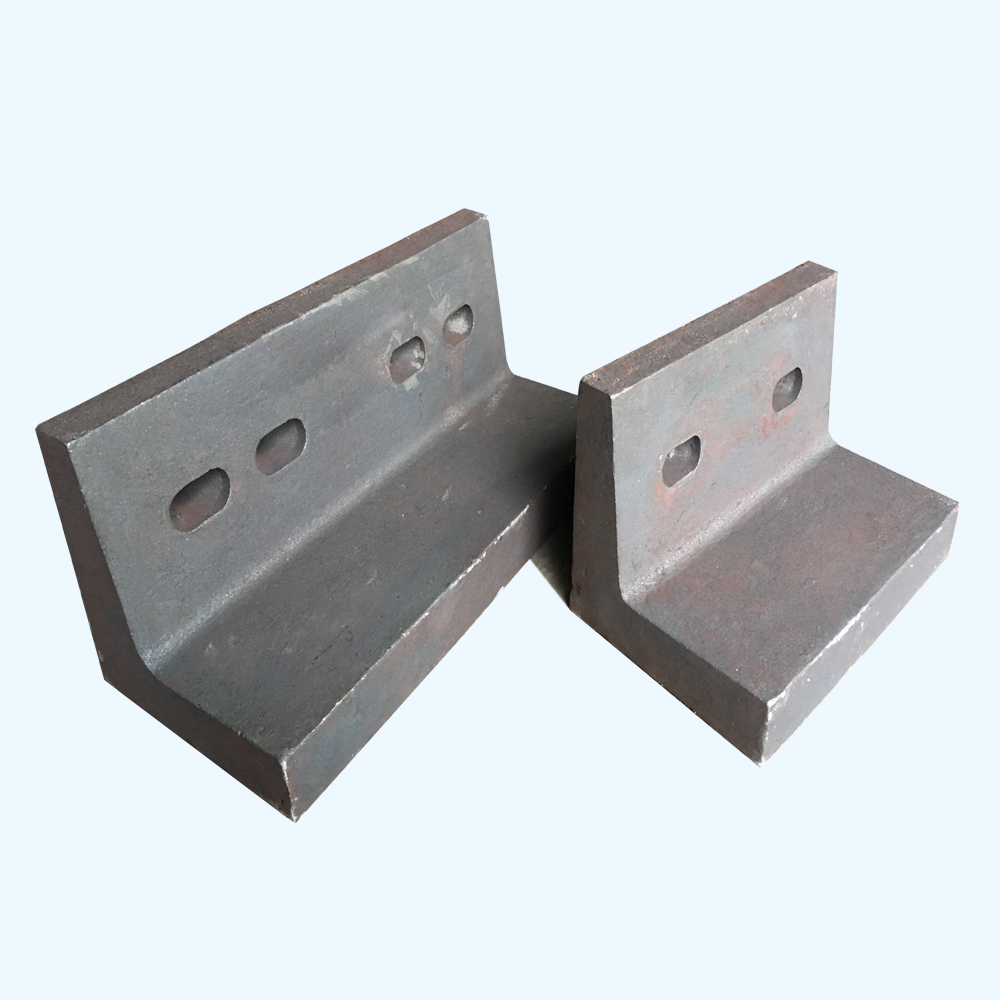

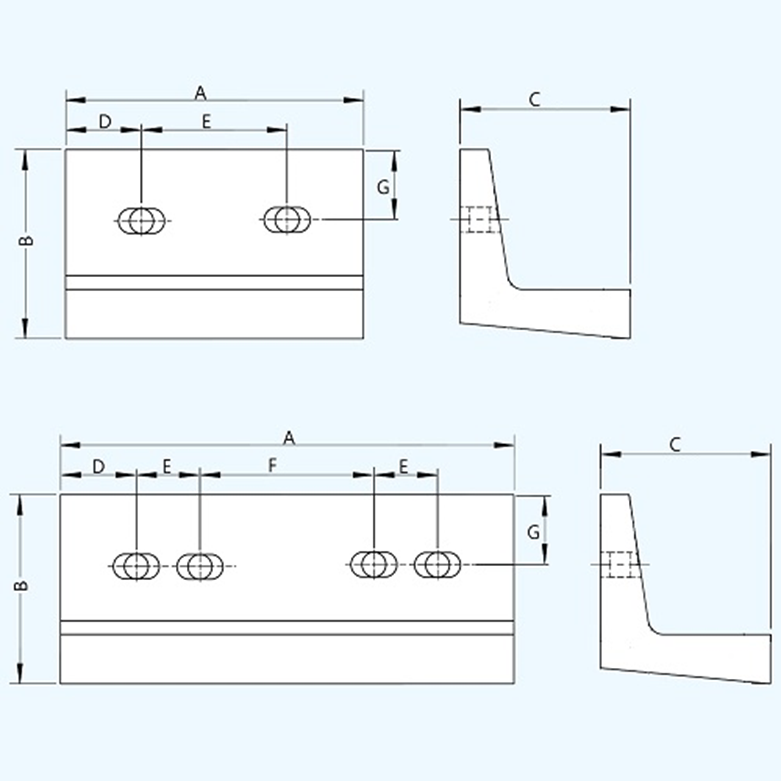

DIMENSION CHART OF LIP LINER | ||||||||
Part No. | A | B | C | D | E | F | G | Weight (kgs) |
LLP1 | 304 | 191 | 178 | 76 | 152 | 71 | 30.00 | |
LLP2 | 312 | 191 | 178 | 80 | 152 | 71 | 30.00 | |
LLP3 | 444 | 191 | 178 | 70 | 76 | 152 | 71 | 44.00 |
LLP4 | 452 | 191 | 178 | 74 | 76 | 152 | 71 | 45.00 |

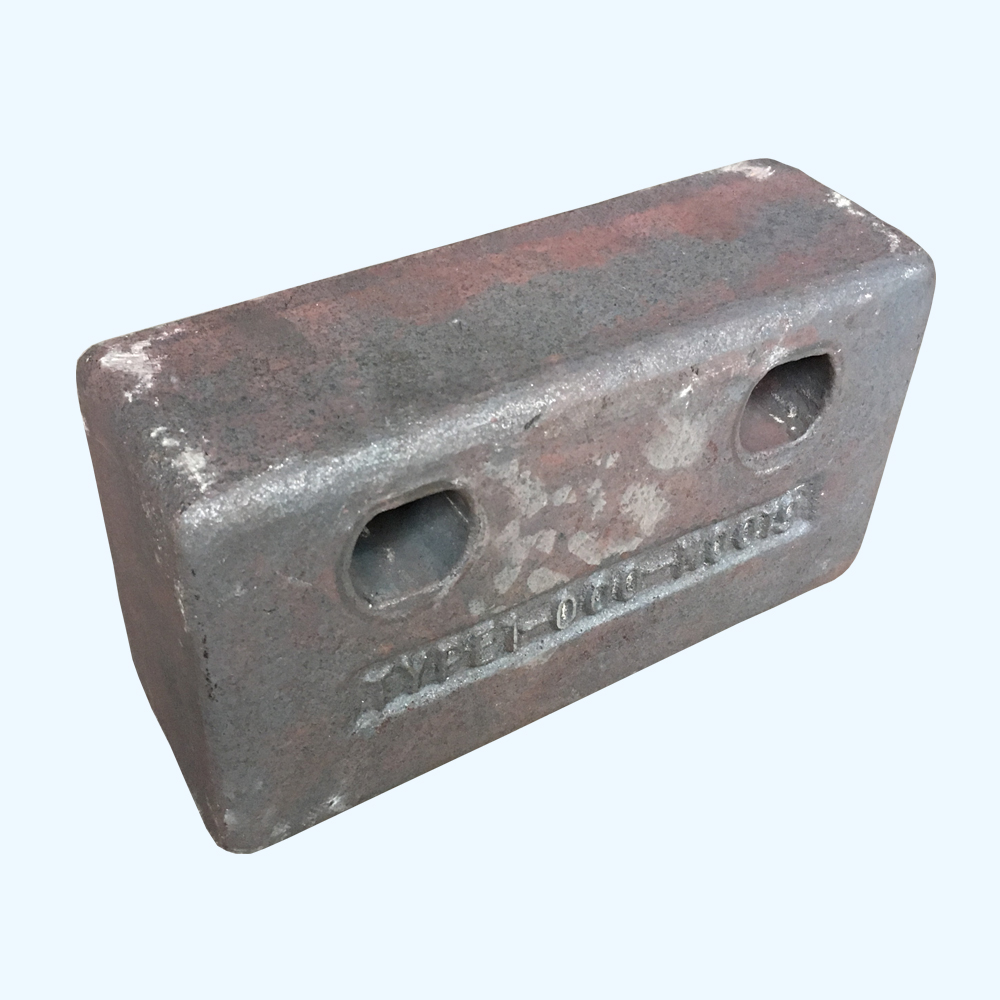

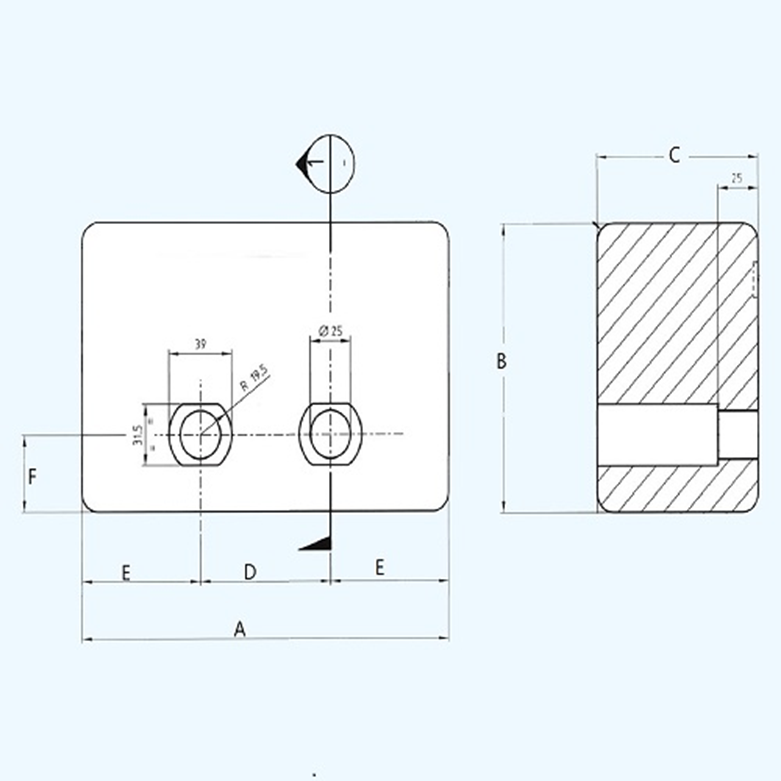

| DIMENSION CHART OF WEAR BILLET | ||||||||
Part No. | A | B | C | D | E | F | Weight (kgs) | |
WB1 | 299 | 150 | 100 | 152 | 73.5 | 40 | 35.00 | |
WB2 | 222 | 150 | 100 | 76 | 73.5 | 40 | 26.00 | |
WB3 | 146 | 150 | 100 | 76 | 35 | 40 | 17.00 | |
WB4 | 70 | 150 | 100 | 0 | 35 | 40 | 8.00 | |
