SKID BAR
Email：
SKID BAR
SKID BAR
Description: chrome moly casting vacuum brazed to mild steel backing plate
Hardness: Brinell 700+

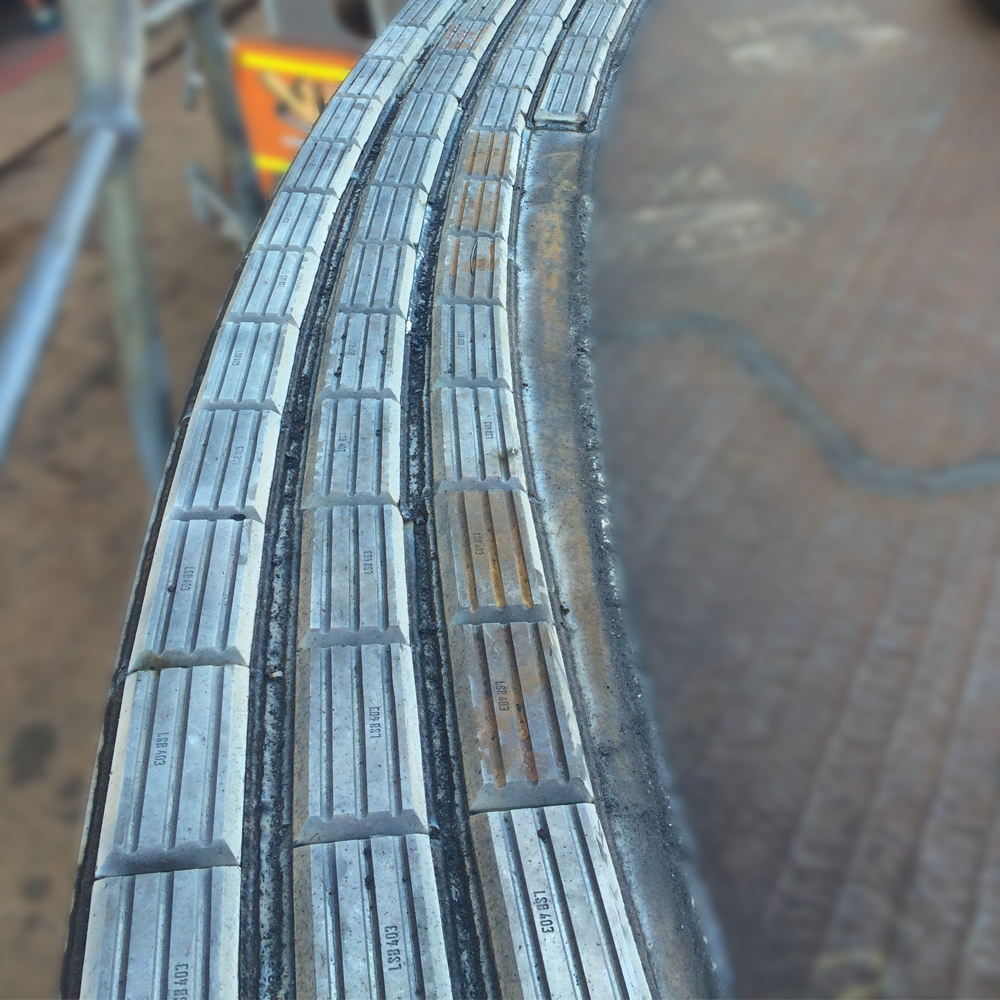

Main application: abrasion, wear & impact protection on heavy machinery
Installing method: arc weld
Customized size is available
Part No. | Type | A | B | C | D | E | Weight (kgs) |

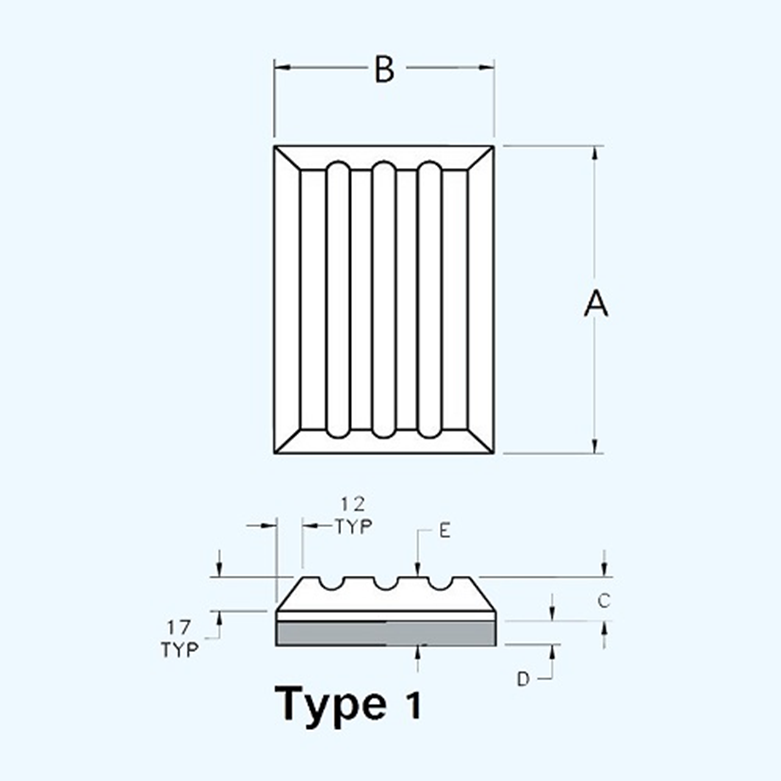

Rectangular | |||||||
SB 403 | 1 | 214 | 101 | 22 | 12 | 34 | 5.1 |
SB 406 | 1 | 302 | 101 | 22 | 12 | 34 | 7.3 |
SB 409 | 1 | 154 | 101 | 22 | 12 | 34 | 3.7 |
SB 205 | 1 | 279 | 75 | 22 | 12 | 34 | 6.1 |

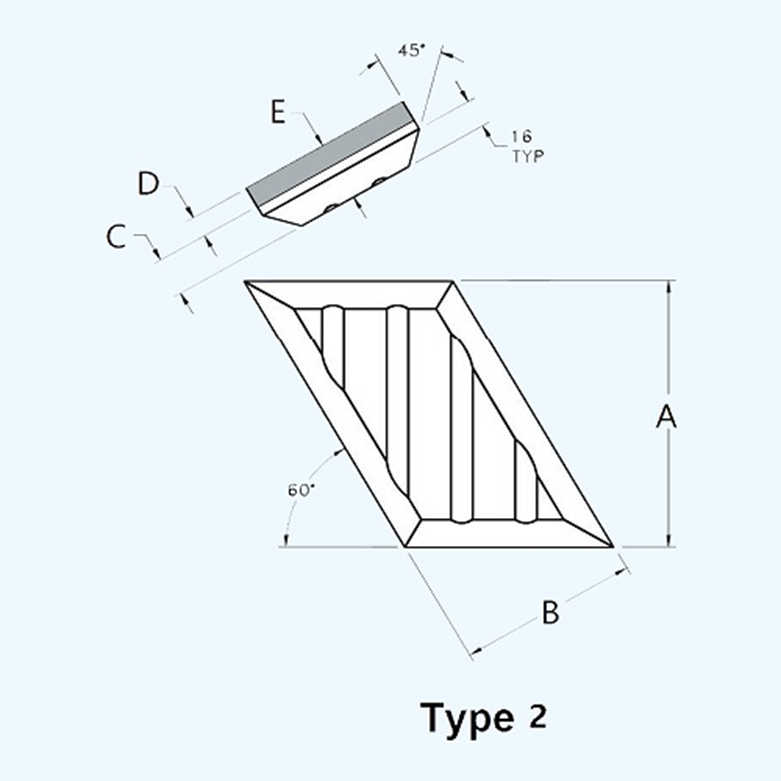

Herringbone | |||||||
SB 404L | 2 | 214 | 101 | 22 | 12 | 34 | 5.9 |
SB 405R | 2 | 214 | 101 | 22 | 12 | 34 | 5.9 |
SB 407L | 2 | 302 | 101 | 22 | 12 | 34 | 8.4 |
SB 408R | 2 | 302 | 101 | 22 | 12 | 34 | 8.4 |
SB 410L | 2 | 154 | 101 | 22 | 12 | 34 | 4.2 |
SB 411R | 2 | 154 | 101 | 22 | 12 | 34 | 4.2 |

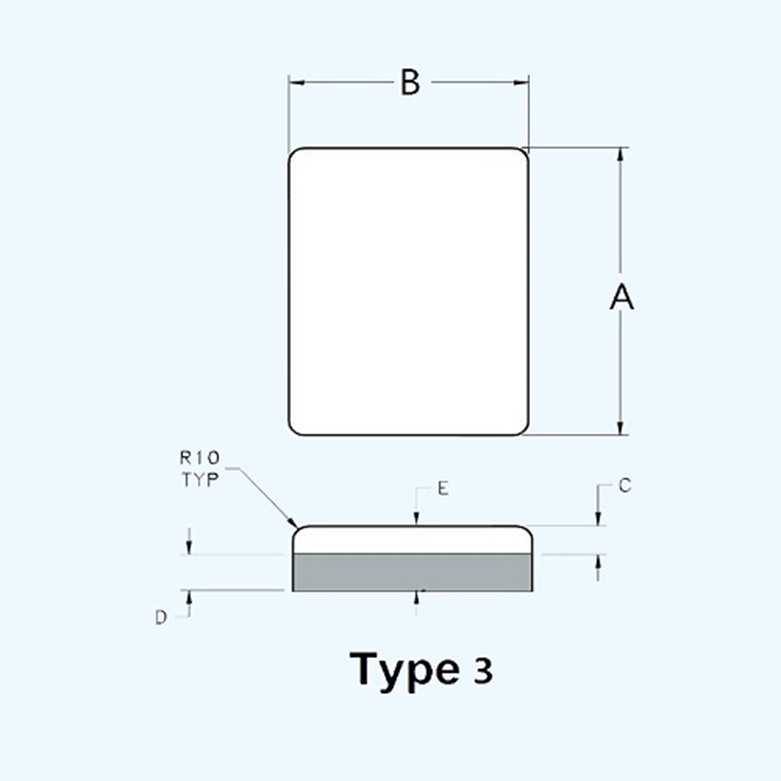

Domed Edge | |||||||
SB 412 | 3 | 250 | 150 | 20 | 25 | 45 | 13.1 |
SB 413 | 3 | 200 | 150 | 20 | 25 | 45 | 10.5 |
SB 414 | 3 | 250 | 250 | 20 | 25 | 45 | 21.9 |
