SHREDDER HAMMER TIPS

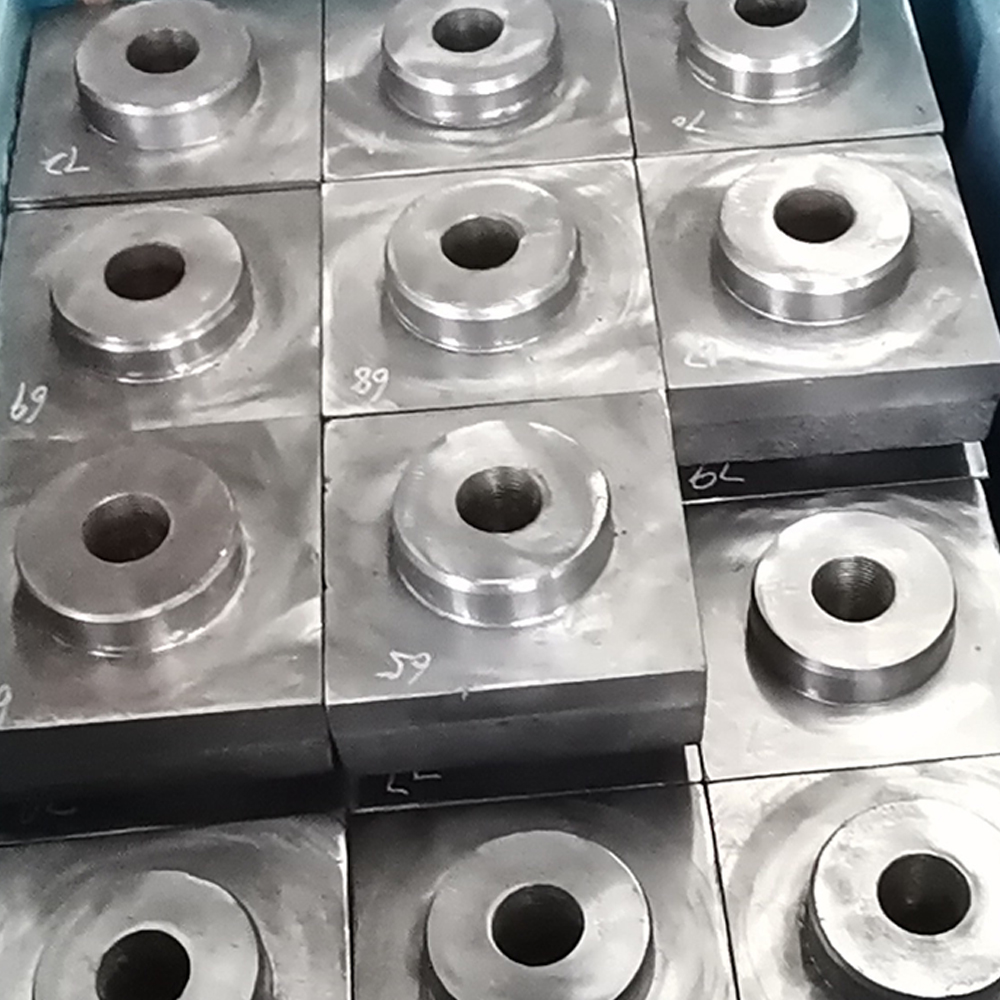

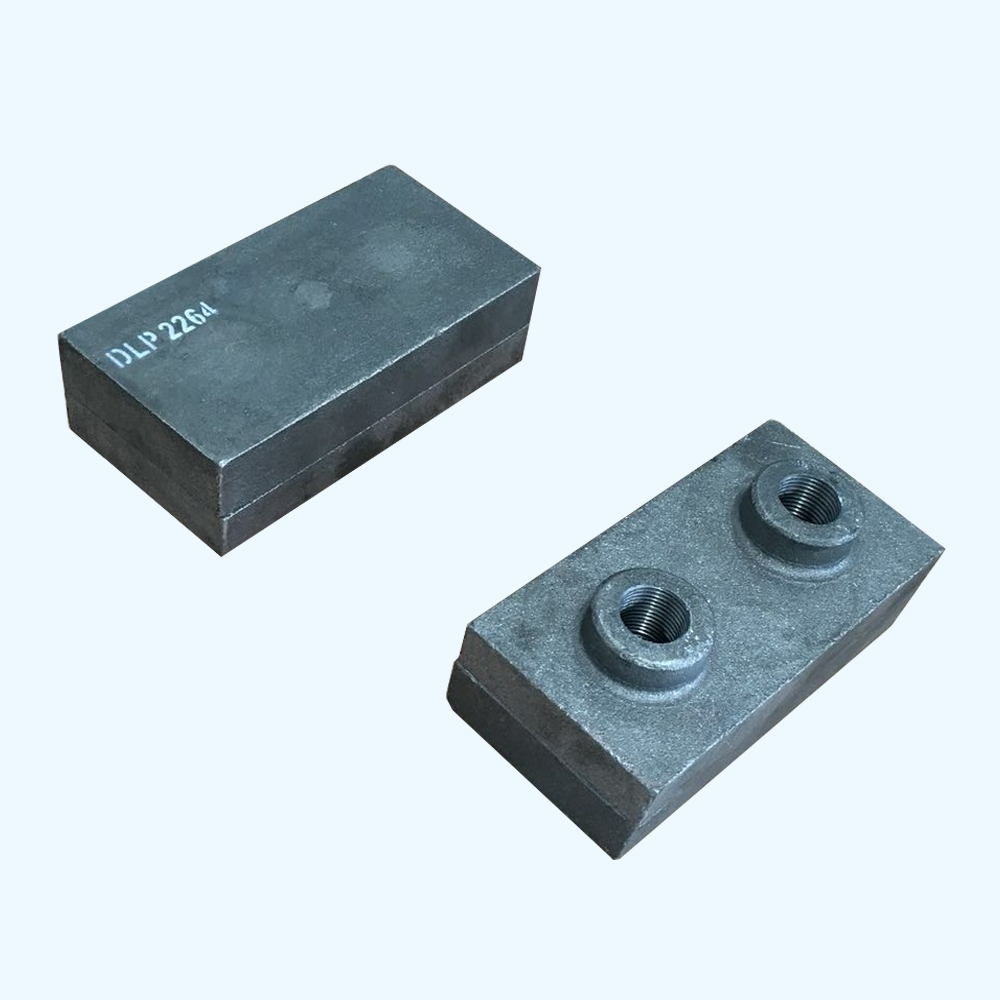

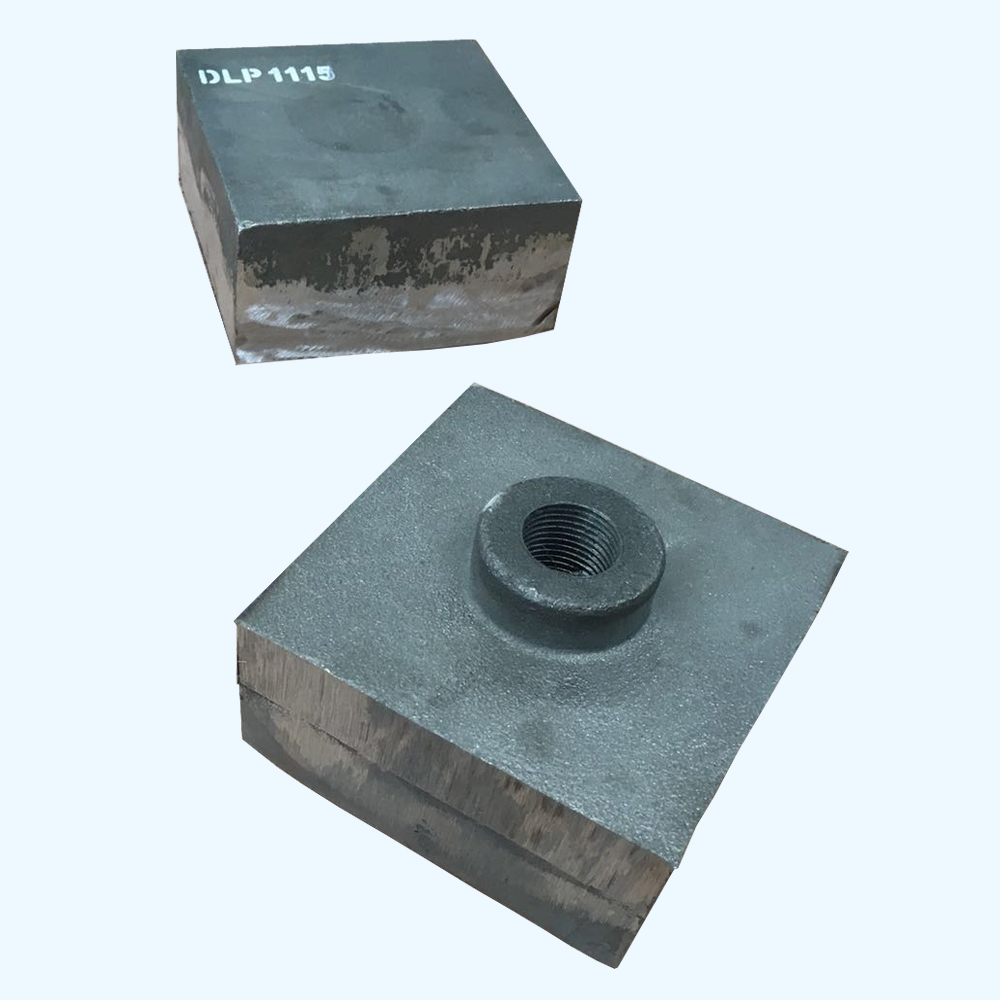

Shredder hammer tips
Description: chrome moly casting vacuum brazed to mild steel backing plate
Hardness: Brinell 600+

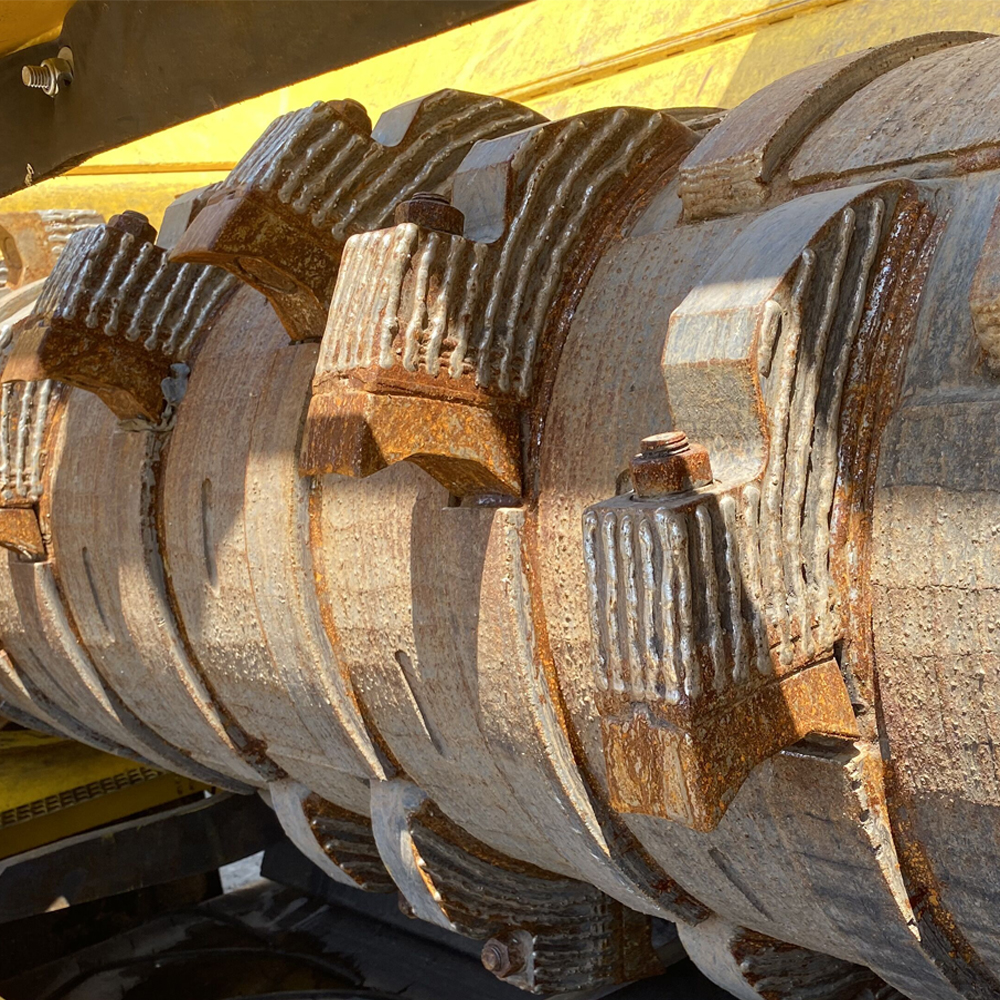

Main application: crushing stone, asphalt, sugar cane, waste with no content of metal scraps etc.

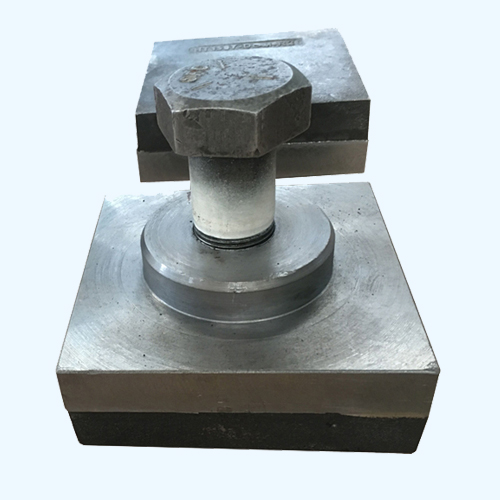

Installing method: bolt
Customized size available

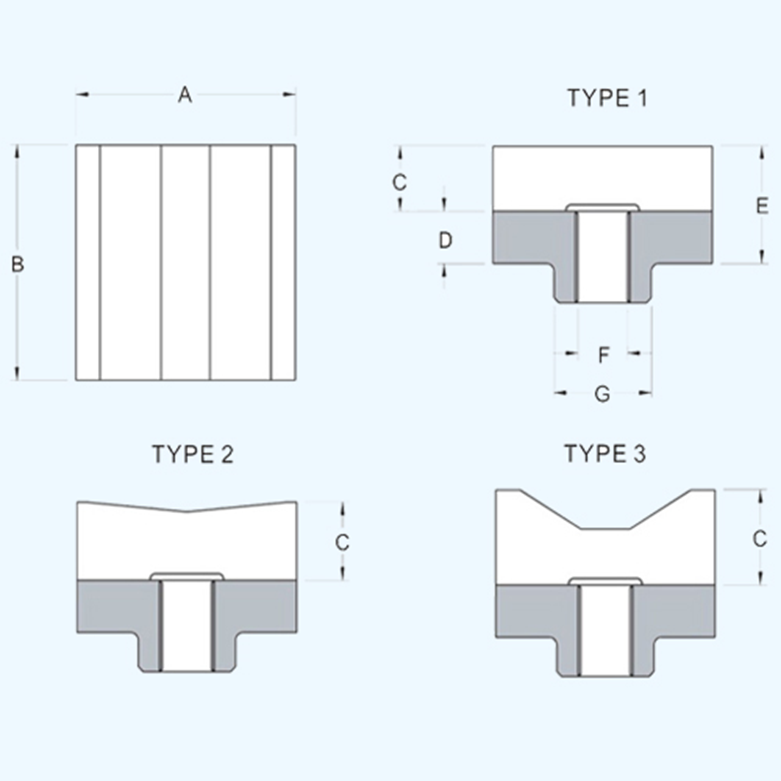

Size chart | |||||||||
Part No. | TYPE | A | B | C | D | E | F | G | Weight (kgs) |
TYPE1 - FLAT | |||||||||
DLP 1340 | 1 | 80 | 56 | 25 | 20 | 45 | M20 x 1.5P | 35.0 | 1.6 |
DLP 1052 | 1 | 80 | 80 | 25 | 20 | 45 | 7/8-14 UNF | 40.0 | 2.4 |
DLP 920 | 1 | 90 | 50 | 25 | 20 | 45 | 7/8-14 UNF | 40.0 | 1.6 |
DLP 653 | 1 | 90 | 90 | 25 | 20 | 45 | 7/8-14 UNF | 40.0 | 2.9 |
FHM 100 | 1 | 100 | 100 | 25 | 20 | 45 | 7/8"-14 UNF | 40.0 | 3.6 |
TYPE2 - FLARED | |||||||||
DLP 1654 | 2 | 90 | 90 | 30 | 20 | 50 | 7/8-14 UNF | 40.0 | 3.0 |
DLP 2038 | 2 | 80 | 56 | 30 | 20 | 50 | M20 x 1.5P | 35.0 | 1.8 |
TYPE3 - BUTTERFLY | |||||||||
DLP 1927 | 3 | 90 | 90 | 35 | 20 | 55 | 7/8-14 UNF | 40.0 | 3.1 |
DLP 2014 | 3 | 90 | 50 | 35 | 20 | 55 | 7/8-14 UNF | 40.0 | 1.8 |
DLP 2039 | 3 | 80 | 56 | 35 | 20 | 55 | M20 x 1.5P | 35.0 | 1.9 |
